- brief introduction

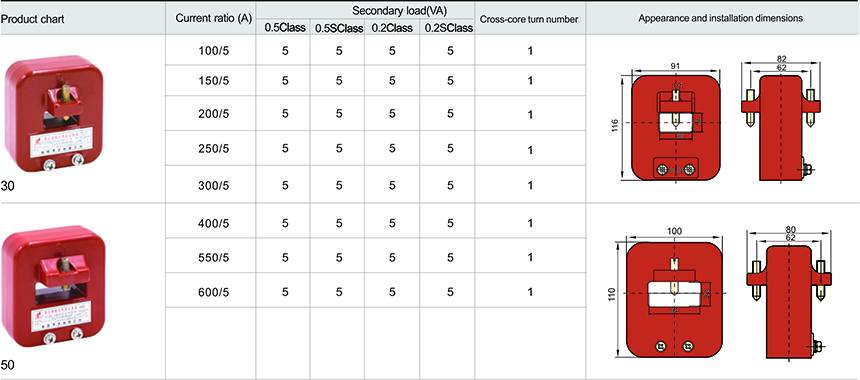

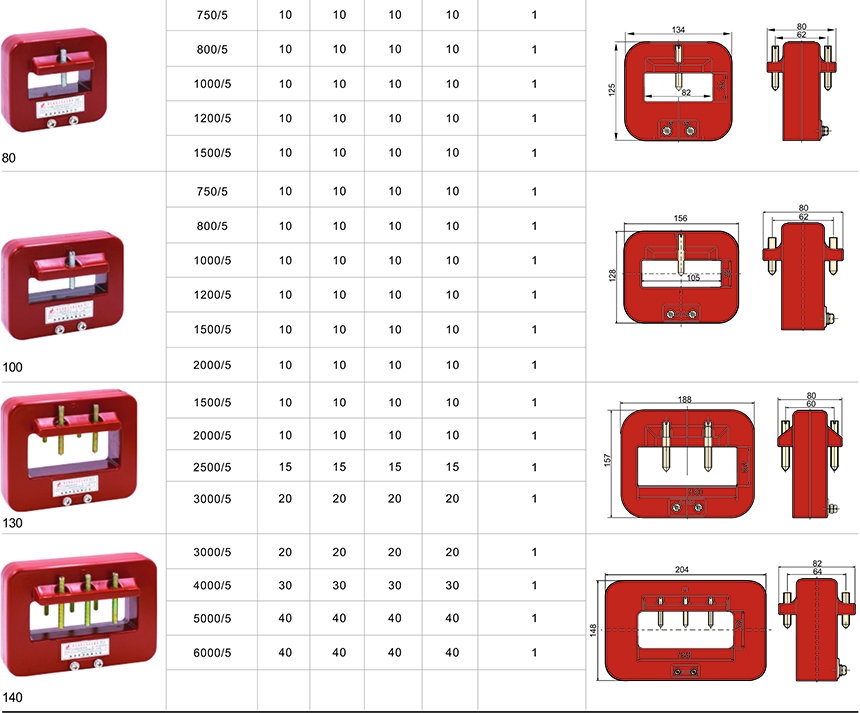

- technical parameter
- Product size
Application
LMZ(J)1-0.66 type current transformer is mainly used for indoor, for rated voltage up to and including 0.66kV, rated frequency 50Hz AC circuit as the electric current and electric energy measurement and relay protection, product adopts casting insulation, adopting bottom fixed installation.
Standard: GB20840

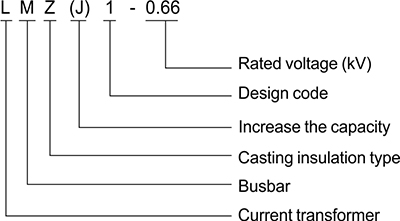

Code and implication
Normal working/installation conditions
1. Installation sites: Indoor
2. Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity in the atmosphere.
Ordering instructions
When the customer ordering, must provide the following information:
1product model and Install the bus width;
2, current ratio;
3, rated output, and the corresponding accurate level;
For example: solid order LMZ(J)1-0.66, Bus width is 50mm,rated output current ratio 600/5 a and 5 va,Accurate magnitude 0.5 magnitude of transformer.
The order code for LMZ(J)1-0.66 600/5 5 va a magnitude of 0.5.
4, if you have special requirements, can be customized consultation with the manufacturer.
The installation accessories
